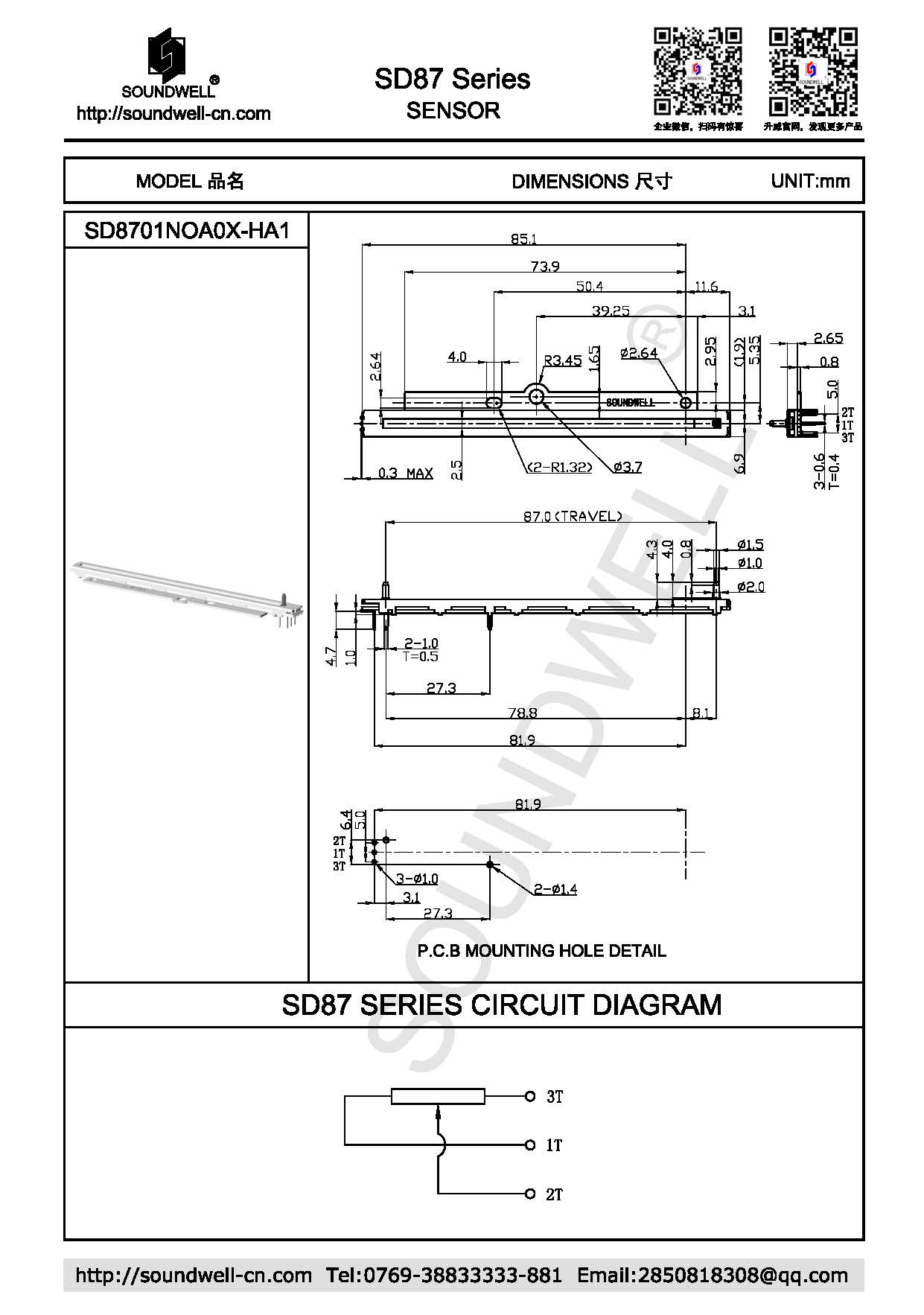

SD87 Slide Resistive Sensor(Customized Product)
|
Sensor model： |
SD87 series |
|
| Applications： |
Home appliances, medical, communications and other electronic devices. |
|
| Product Features: |
Long life with good operation feel and high precision. |
|
| Functions： |
Mainly used for position detection. |
|
| Main Specifications: |
Travel: 87mm Rated power: 0.1W; Rated voltage: DC 5V; Linearity error: ±1%; Operating temperature: -30℃ ~85℃; Operating life: 300,000 Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Torque: 50gf.cm Max
2. Mechanical Travel: 87mm
3. Lever Stopper Strength: ≥3Kgf
4. Push-pull strength of the lever: ≥3Kgf
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance: 10KΩ±20%
2. Resistance Taper: B
3. Rated Power: 0.1W
4. Rated voltage: 5V DC
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 300,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
